How to Configure Micro Thin Client

![Image](/s/image/how-to-configure-micro-thin-client/how-to-configure-micro-4-thin-client-1.jpg "thin client 1")

Thin client based on an ARM quad-core processor. Compact, with a fully fanless design for silent operation in home and office environments. Designed and manufactured in India for Indian conditions. Built-in Thinux Embedded Linux thin client firmware with Google Chrome and Mozilla Firefox web browsers. RDP, VNC and X11 connectivity, among other features.

MICRO THIN CLIENT CONFIGURATION

  • Open the Network icon Image on your desktop.

  • The Network settings window opens. Click Unlock.Image

  • An Authentication Dialogue Box opens. Enter the root password, thinux, and click Enter.

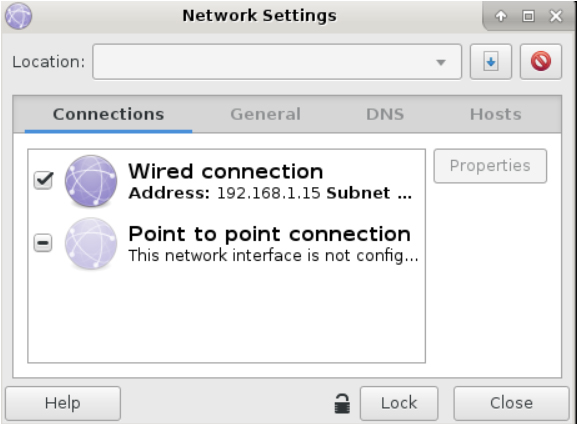

  • Go to Connections in the network settings window. Click Wired connection and then click Properties.

![Image](/s/image/how-to-configure-micro-thin-client/how-to-configure-micro-4-thin-client-4.jpg "thin client 1")

UPDATING NETMASK AND GATEWAY ROUTER SETTINGS

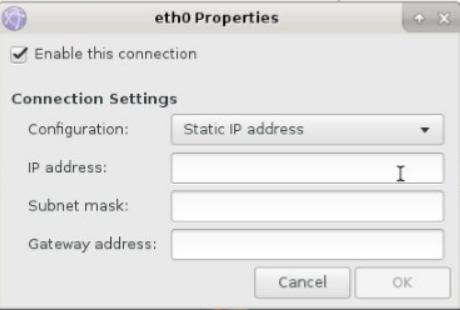

  • The ethernet properties window opens. Set Configuration to static IP address.

  • Click “Wired Connection” and enter the necessary network details such as the IP address, Subnet mask and Gateway address to establish a connection. The Server and the Thin client must be on the same network.

  • Click OK and then click Lock. Close the Network setting window.

![Image](/s/image/how-to-configure-micro-thin-client/how-to-configure-micro-4-thin-client-5.jpg "thin client 1")
  • Check the network connection with the ping command, for example: ping 192.168.x.xx

MANAGING RDP PREFERENCES

Click the Remmina icon on the desktop. Click the Image icon at the top left of the Remmina Remote Desktop Client window to create a new connection profile.

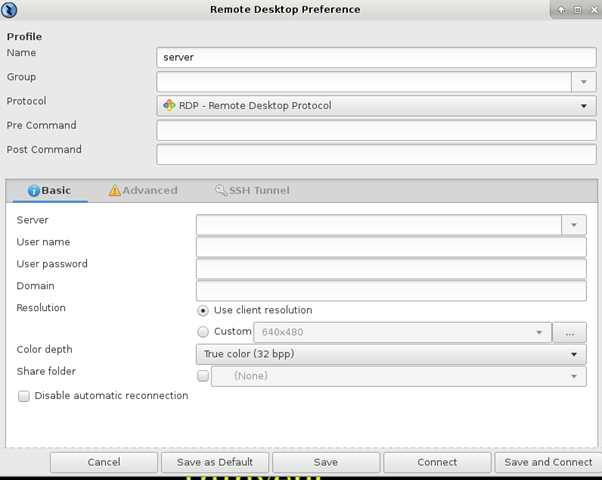

  • The Remote Desktop Preference window opens. In the Profile section, choose a Name for the connection, such as the server name.

  • Leave Group blank. Set Protocol to RDP- Remote Desktop Protocol. The drop-down menu lists the protocols that Thinux supports. Leave Pre Command and Post Command blank.

  • In Basic RDP Configuration, enter the server's IP address in the server field. Enter the Username and Password you created on the server. Leave Domain blank. Select Use client resolution. Set Color depth to True color (32 bps). Click SAVE.

![Image](/s/image/how-to-configure-micro-thin-client/how-to-configure-micro-4-thin-client-7.jpg "thin client 1")

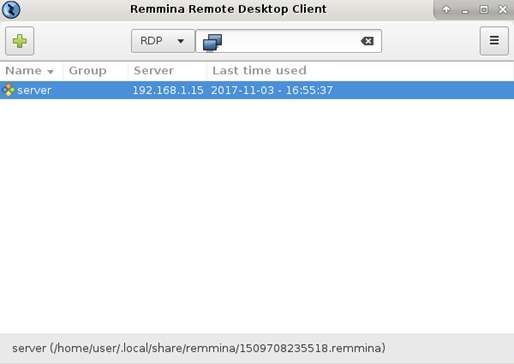

  • The Remmina Remote Desktop Client window now shows the name of the user you created in the Remote Desktop Preference window. Double-click it.
![Image](/s/image/how-to-configure-micro-thin-client/how-to-configure-micro-4-thin-client-8.jpg "thin client 1")

  • The Accept Certificate Window opens. Click OK.

  • The Connecting to server window opens. Enter the Password and click OK.

![Image](/s/image/how-to-configure-micro-thin-client/how-to-configure-micro-4-thin-client-9.jpg "thin client 1")
