Thinvent® ARM® Cortex A55 processor (4 core, १.९ गिगाहर्ट्झ पर्यंत, 1 MB cache) based Mainboard - Thinvent

Thinvent® ARM® Cortex A55 processor (4 core, १.९ गिगाहर्ट्झ पर्यंत, 1 MB cache) based Mainboard | 6P view
Thinvent® ARM® Cortex A55 processor (4 core, १.९ गिगाहर्ट्झ पर्यंत, 1 MB cache) based Mainboard | 6P view

Thinvent® ARM® Cortex A55 processor (4 core, १.९ गिगाहर्ट्झ पर्यंत, 1 MB cache) based Mainboard

पार्ट आयडी: 6P

An efficient ARM Cortex A55 mainboard for embedded and thin client solutions.

तपशील

प्रक्रिया करीत आहे
कोअर 4
कमाल वारंवारता १.९ गीगाहर्ट्झ
कॅशे १ एमबी
प्रोसेसर ब्रँड आर्म
डिस्प्ले
एचडीएमआय 1
ऑडिओ
स्पीकर आउट 1
कनेक्टिव्हिटी
USB 3.0 1
यूएसबी २.० 1
मायक्रोएसडी स्लॉट 1
नेटवर्किंग
इथरनेट १०० एमबीपीएस
पॉवर
वीज वापर कमाल ७ वॅट
भौतिक
थर्मल डिझाइन फॅनलेस पॅसिव्ह कूलिंग

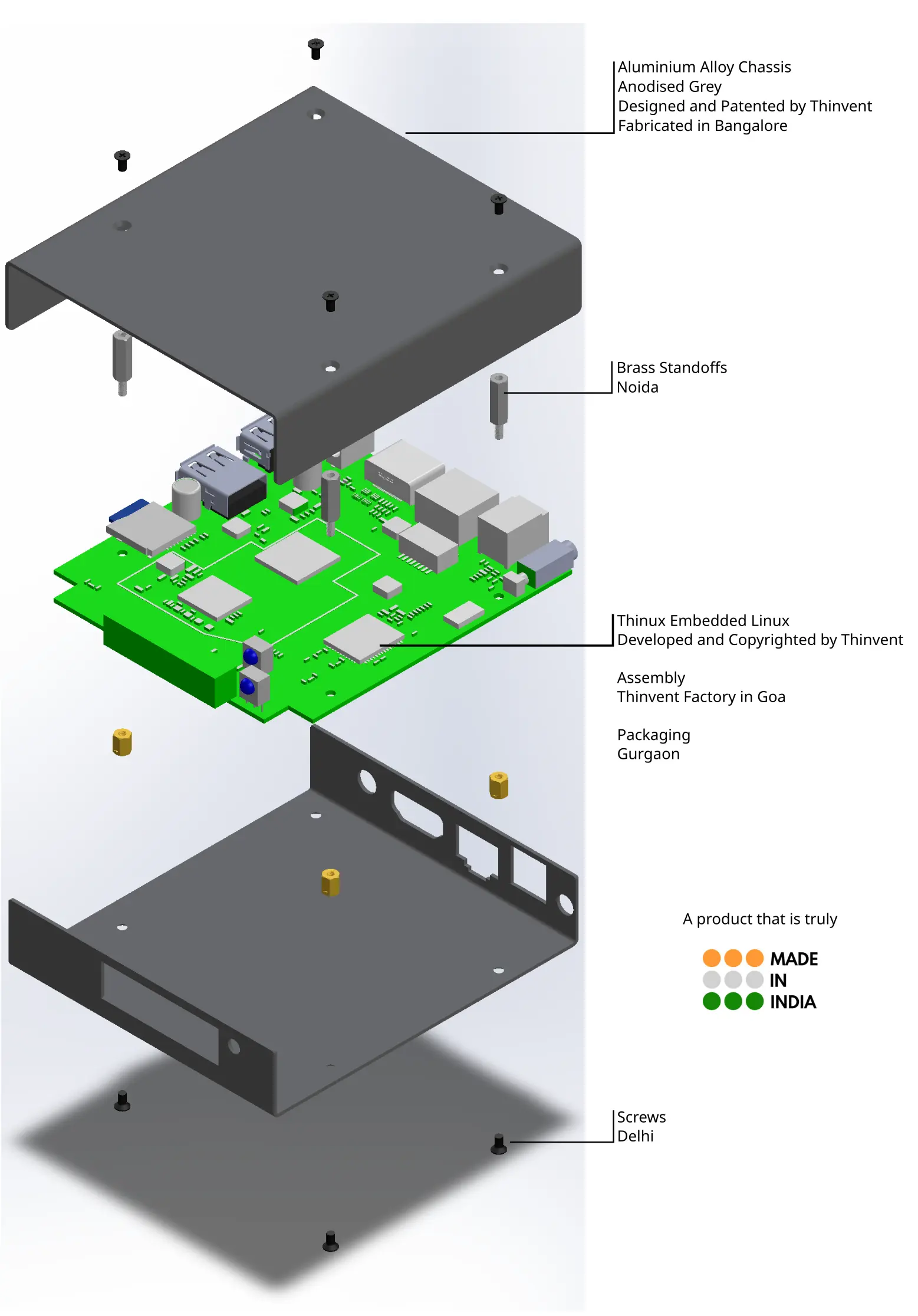

The '6P' mainboard is a highly integrated and power-efficient solution built around the ARM Cortex A55 quad-core processor. With 4GB of RAM and 64GB of eMMC storage onboard, it provides a complete computing system on a compact board. It features an HDMI output, USB 3.0, and 100Mbps Ethernet. The integrated dual-antenna WiFi ensures robust wireless connectivity. Designed for our Micro 6 Pro chassis, this board is optimized for our Thinux Embedded Linux OS, making it a perfect choice for thin clients, digital signage players, and custom IoT devices where low power consumption and a small footprint are essential. Its 7-watt maximum power consumption makes it an exceptionally green computing solution.
