Thinvent® Aero Mini PC Chassis Set
Part ID: Aero
A sleek and modern chassis offering excellent versatility for Mini PCs.
Specifications
Connectivity
| Front USB 2.0 | 4 |
| Front USB C | 1 |
Audio
| Front Speaker Out | 1 |
| Front Mic In | 1 |
Environmental
| Operating Temperature | 0°C ~ 35°C |
| Operating Humidity | 20% ~ 80% RH, non condensing |
| Certifications | BIS, RoHS, ISO |
Physical
| Housing Material | Steel and ABS Plastic |
| Housing Finish | Powder Coated |
| Housing Colour | Black |
| Dimensions | 198mm × 187mm × 40mm |
| Form Factor | Mini PC |

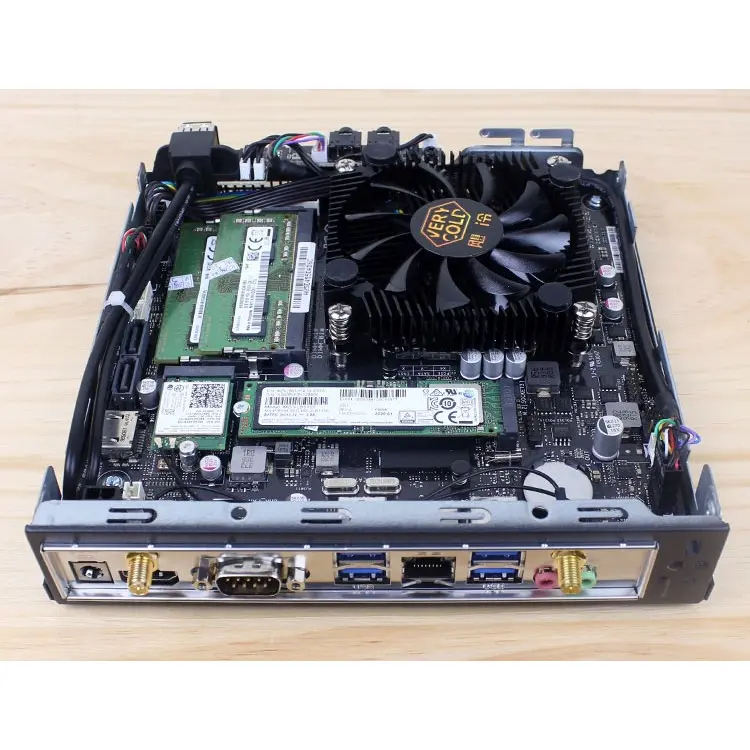

The Aero chassis provides a stylish and functional housing for high-performance Mini PCs. Its design accommodates a wide range of Thin Mini-ITX motherboards and offers superior flexibility for storage, supporting both m.2 and 2.5-inch SATA drives. The front panel is equipped with four USB 2.0 ports, a USB-C port, and audio jacks for convenient access. Constructed from a combination of steel and ABS plastic, the Aero is both durable and lightweight. Its dimensions of 198mm × 187mm × 40mm make it a compact addition to any desk setup. The powder-coated black finish gives it a professional look suitable for both home and office environments. With its blend of aesthetics, expandability, and robust construction, the Aero chassis is the ideal choice for building a powerful and customized Mini PC.
