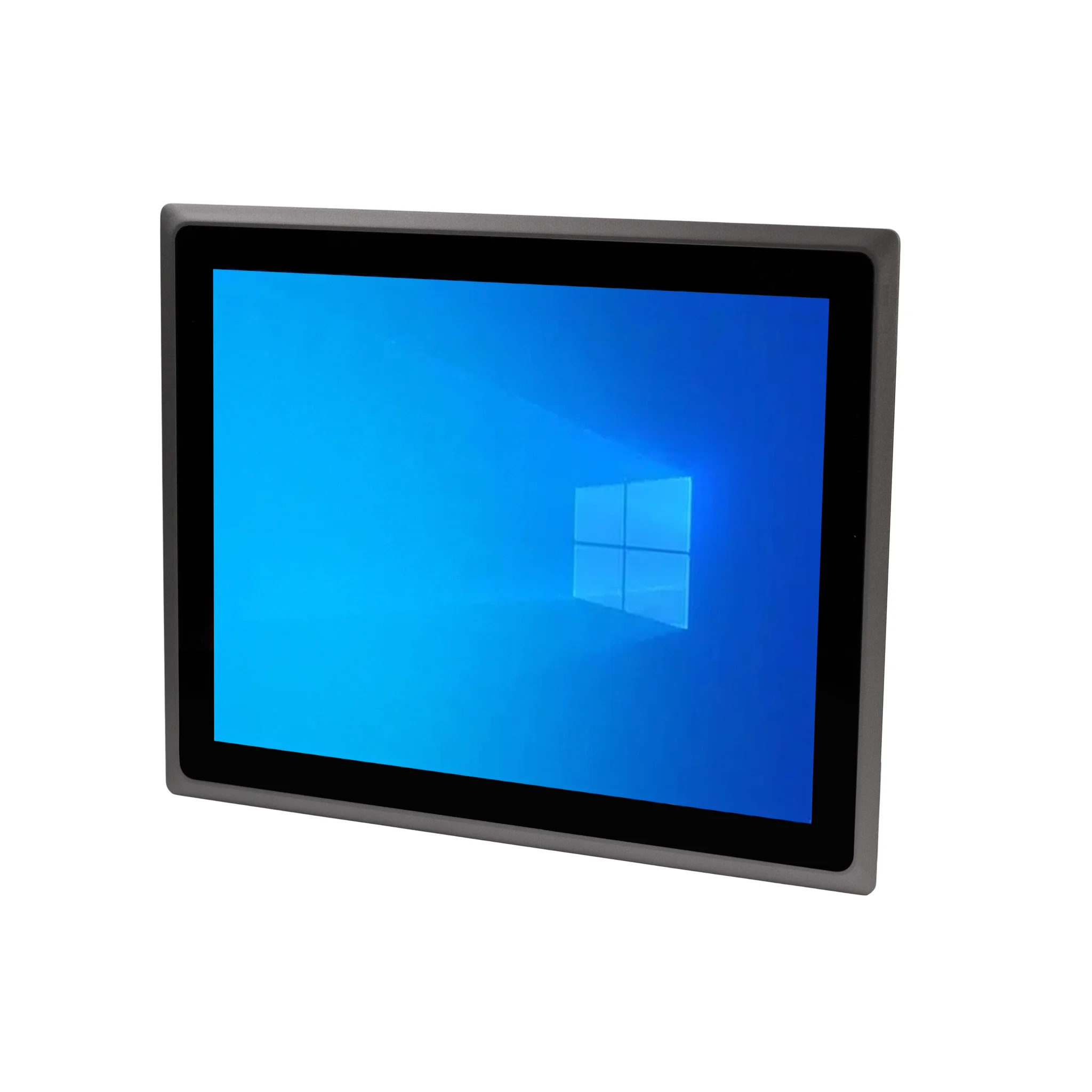

Thinvent® 15" Industrial Panel PC, Intel® Core™ Ultra 5 125U processor (12 core, up to 4.3 GHz, 12 MB cache) Dual LAN, 64GB DDR5 RAM (2 x 32GB), 2TB SSD, 12V 5A Adapter, Dual Band WiFi, Windows 11 Professional, Thinvent® Keyboard and Mouse set | 2 15 inch Panel PC Front Left Perspective view

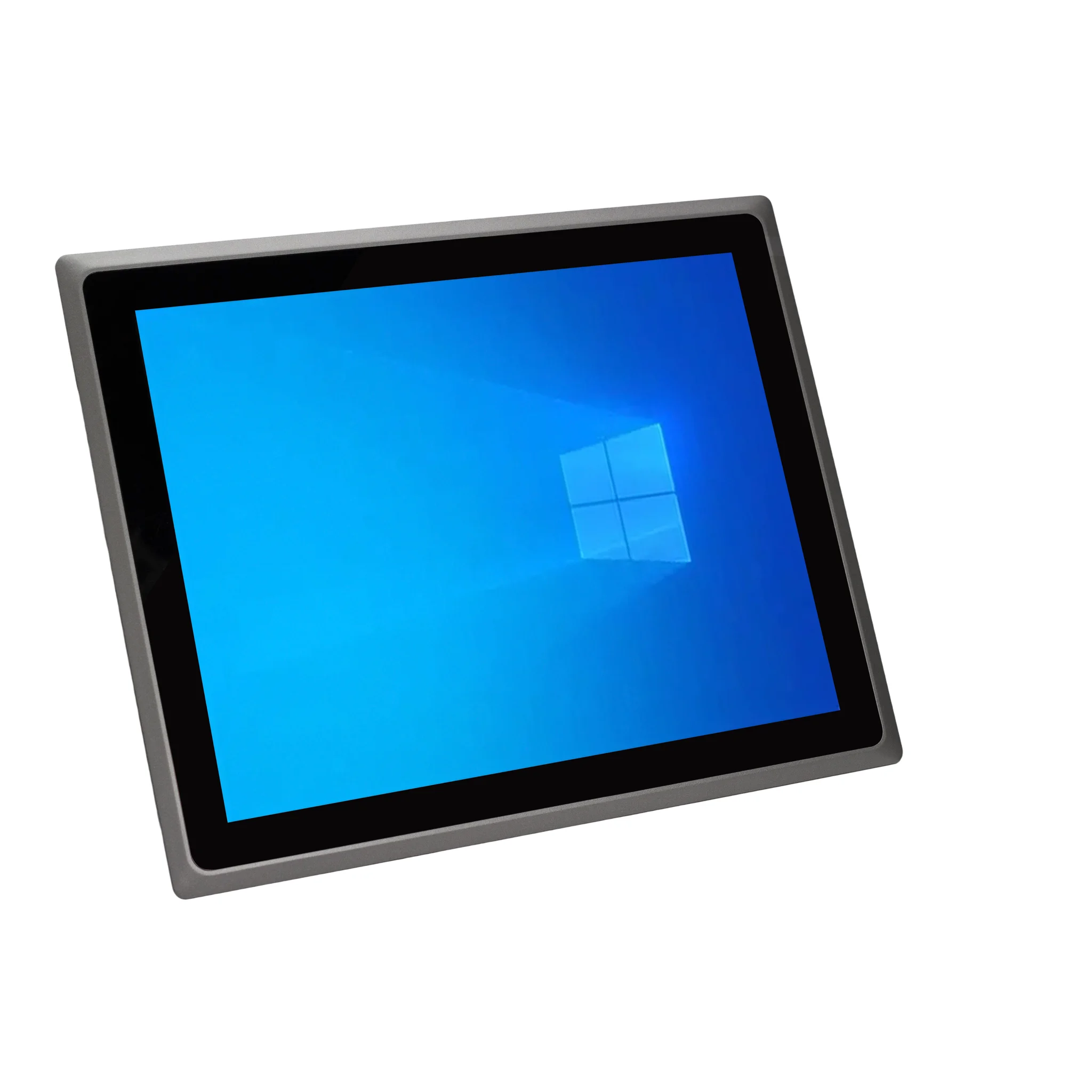

Thinvent® 15" Industrial Panel PC, Intel® Core™ Ultra 5 125U processor (12 core, up to 4.3 GHz, 12 MB cache) Dual LAN, 64GB DDR5 RAM (2 x 32GB), 2TB SSD, 12V 5A Adapter, Dual Band WiFi, Windows 11 Professional, Thinvent® Keyboard and Mouse set | 3 15 inch Panel PC Front Right Perspective view

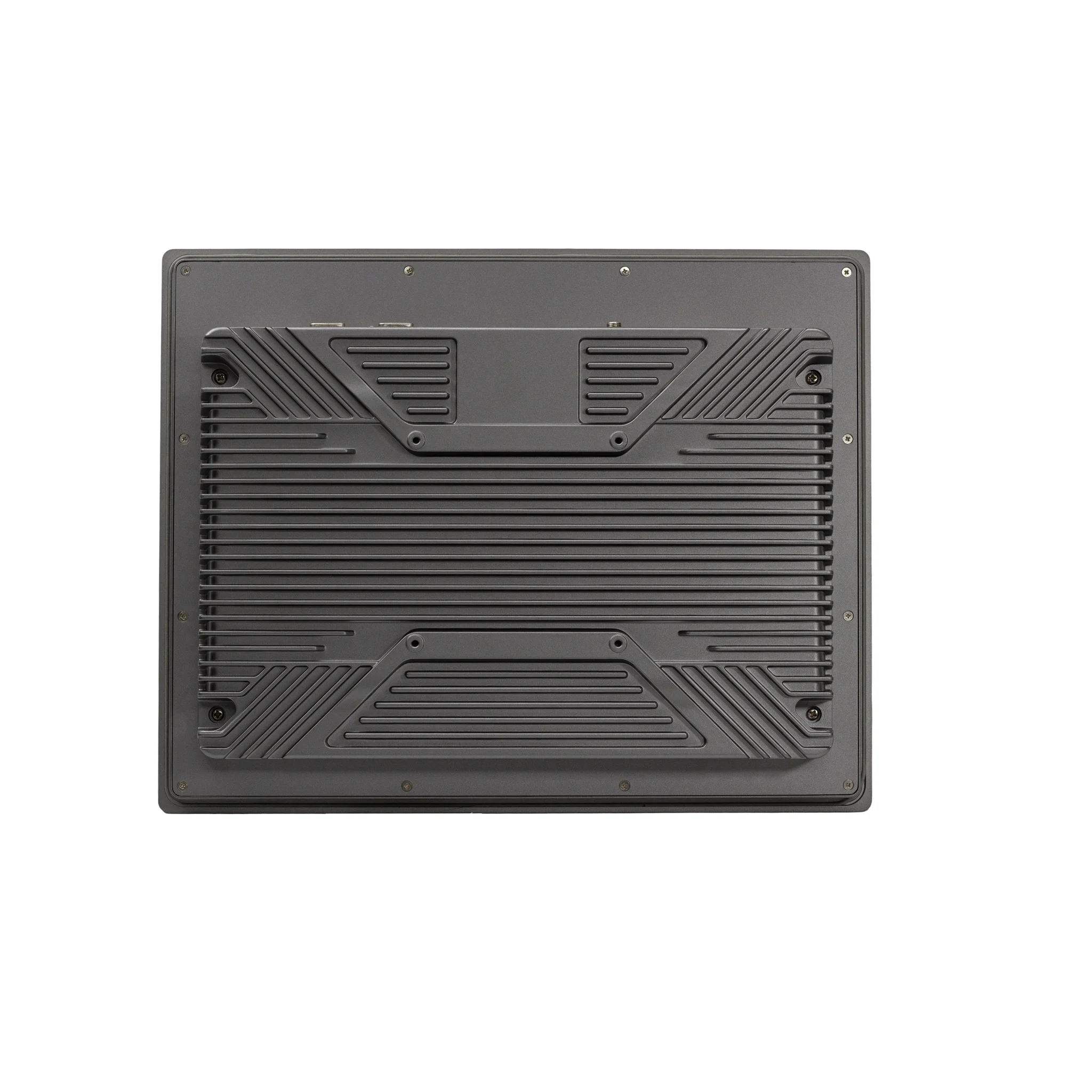

Thinvent® 15" Industrial Panel PC, Intel® Core™ Ultra 5 125U processor (12 core, up to 4.3 GHz, 12 MB cache) Dual LAN, 64GB DDR5 RAM (2 x 32GB), 2TB SSD, 12V 5A Adapter, Dual Band WiFi, Windows 11 Professional, Thinvent® Keyboard and Mouse set | 4 15 inch Panel PC Rear view

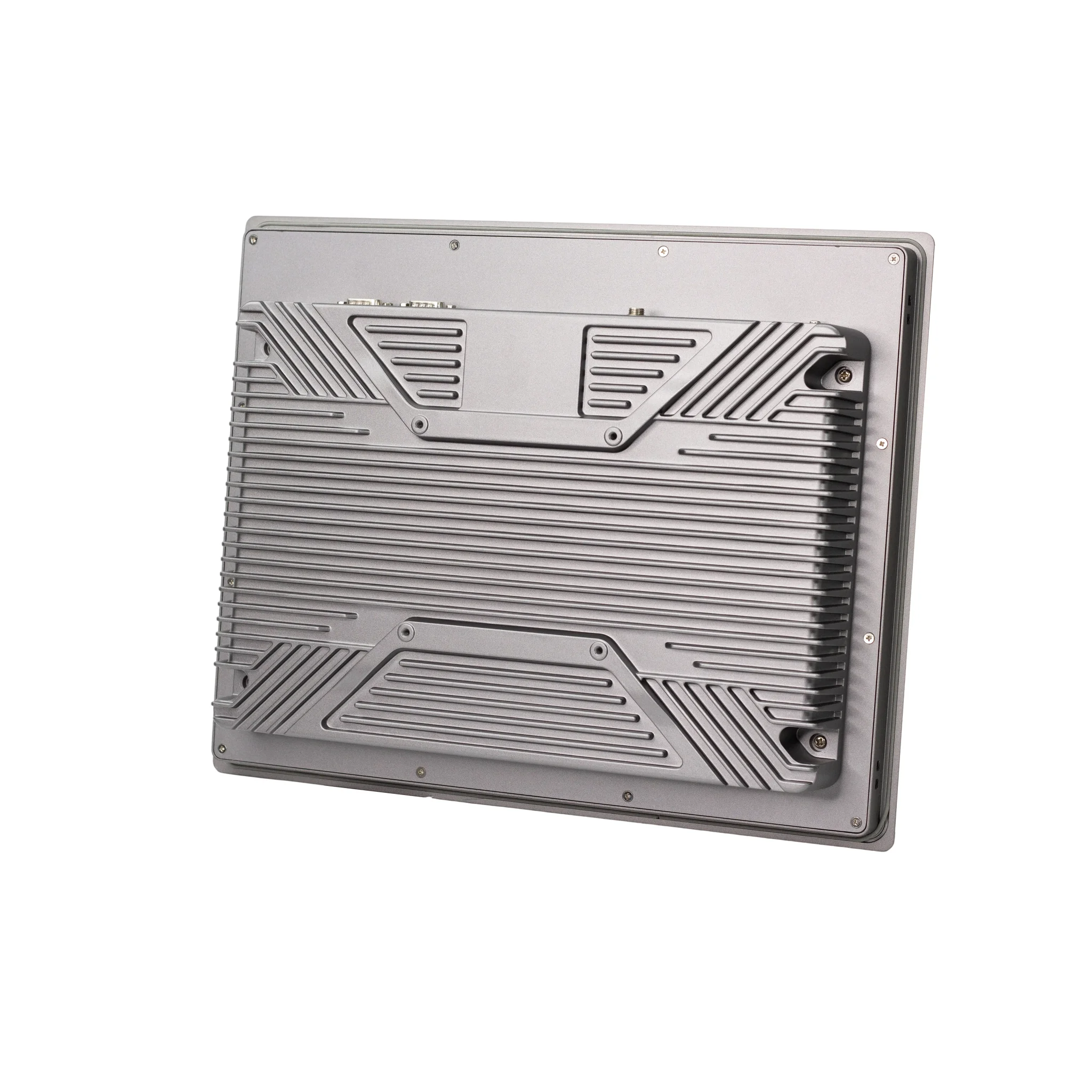

Thinvent® 15" Industrial Panel PC, Intel® Core™ Ultra 5 125U processor (12 core, up to 4.3 GHz, 12 MB cache) Dual LAN, 64GB DDR5 RAM (2 x 32GB), 2TB SSD, 12V 5A Adapter, Dual Band WiFi, Windows 11 Professional, Thinvent® Keyboard and Mouse set | 5 15 inch Panel PC Rear Perspective view

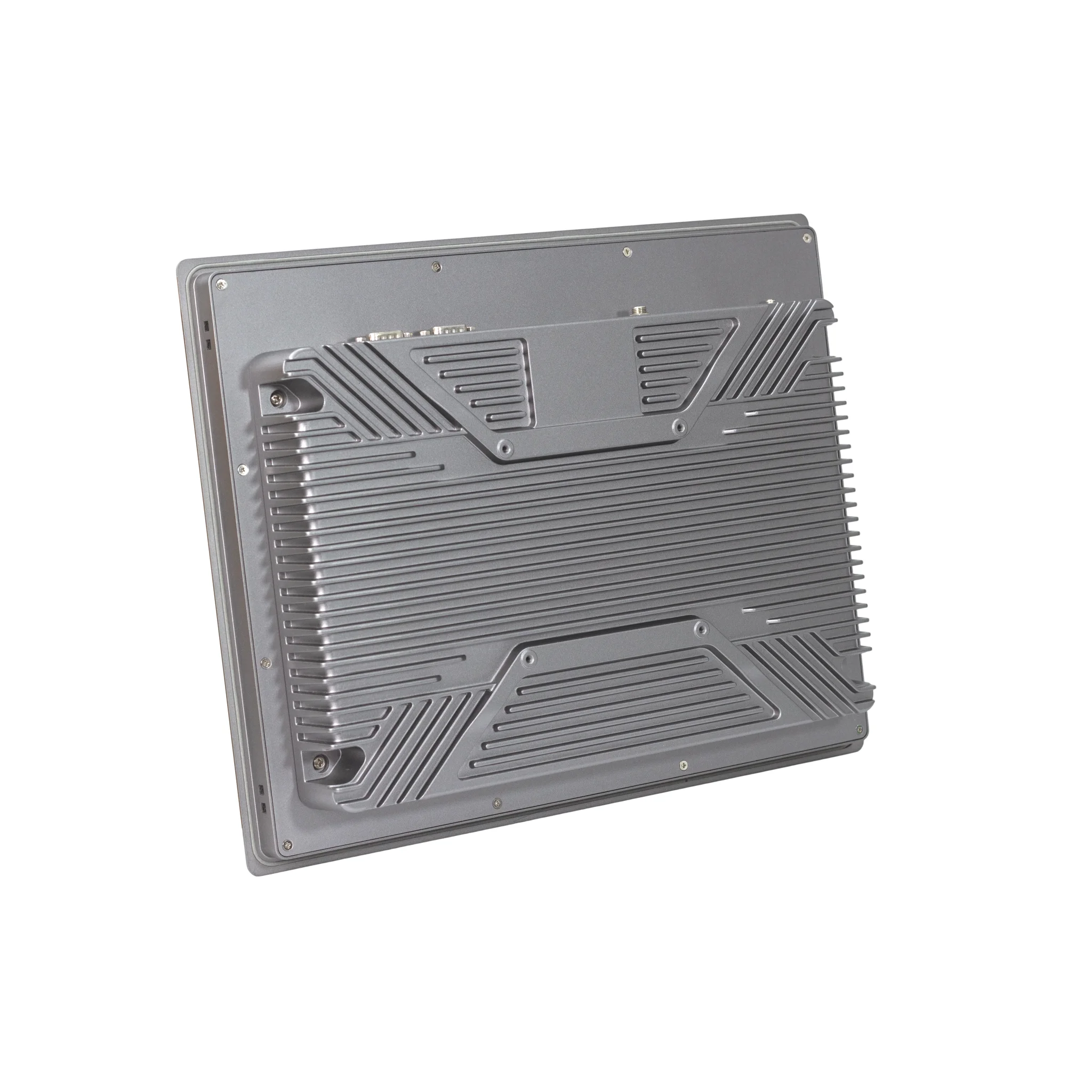

Thinvent® 15" Industrial Panel PC, Intel® Core™ Ultra 5 125U processor (12 core, up to 4.3 GHz, 12 MB cache) Dual LAN, 64GB DDR5 RAM (2 x 32GB), 2TB SSD, 12V 5A Adapter, Dual Band WiFi, Windows 11 Professional, Thinvent® Keyboard and Mouse set | 6 15 inch Panel PC Rear Left Perspective view

Thinvent® 15" Industrial Panel PC, Intel® Core™ Ultra 5 125U processor (12 core, up to 4.3 GHz, 12 MB cache) Dual LAN, 64GB DDR5 RAM (2 x 32GB), 2TB SSD, 12V 5A Adapter, Dual Band WiFi, Windows 11 Professional, Thinvent® Keyboard and Mouse set

SKU: PPC15-cu5_14l-32_5_32_5-m2048-12_5-m-11O-KM

A 15 inch industrial panel PC built to keep your operation running, day after day.

Specifications

Processing
Generation 14th
Series Ultra 5
Processor Brand Intel
Processor Model 125U
Cores 12
Max Frequency 4.3 GHz
Cache 12 MB
Main Memory 64 GB
SSD Storage 2048 GB
Display
Screen Size 15 inch
Resolution 1024 × 768
Brightness 350 nits
Viewing Angle Horizontal 178°, Vertical 178°
HDMI 2.0 1
VGA 1
Audio
Speaker Out 1
Mic In 1
Connectivity
USB 3.2 2
USB 2.0 2
RS485 Option 1
Networking
Ethernet 1000 Mbps
Ethernet Ports 2
Wireless Networking Wi-Fi 5 (802.11ac), dual band
Power
DC Voltage 12 Volts
DC Current 5 Amps
Power Input 100~240 Volts AC, 50~60 Hz, 1.5 Amps maximum
Cable Length 2 Metre
Physical
Form Factor Panel PC
Thermal Design Fanless Passive Cooling
Housing Material Aluminium
Net and Gross Weight 1.35kg, 1.35kg
Accessories
Keyboard and Mouse 1
Operating System
Operating System Microsoft Windows 11 Professional

The Thinvent 15 inch Industrial Panel PC brings serious computing power to the factory floor, the control room, or the shop counter. With an Intel Core Ultra 5 125U processor and 12 cores, it handles demanding applications without hesitation, so your team spends time on the work that matters rather than waiting on a screen.

Why choose this panel PC
  • Reliable performance where it counts. The Intel Core Ultra 5 125U keeps production dashboards, point of sale software, and machine interfaces responsive all shift long.
  • Clear, comfortable viewing. The 15 inch display with 350 nits brightness and wide 178 degree viewing angles stays readable from different positions on the floor, reducing squinting and misreads.
  • Connectivity that fits real installations. Dual gigabit Ethernet ports, dual band WiFi, USB, HDMI, VGA, and an optional RS485 port let you connect to existing equipment, networks, and peripherals without workarounds.
  • Built for demanding environments. The aluminium housing and fanless passive cooling design mean fewer moving parts to fail, so you can place it in dusty or hot areas with confidence.
  • Ready to work out of the box. Windows 11 Professional comes preinstalled, and a Thinvent keyboard and mouse set is included, so commissioning is quick.
  • Sensible for long term deployment. 4GB DDR4 RAM and a 128GB SSD cover everyday industrial workloads, while the 12V adapter and wide range AC input suit a variety of power setups.

If you need a dependable panel PC that combines Intel performance, robust construction, and practical connectivity, the Thinvent 15 inch Industrial Panel PC is a smart addition to your operation.
