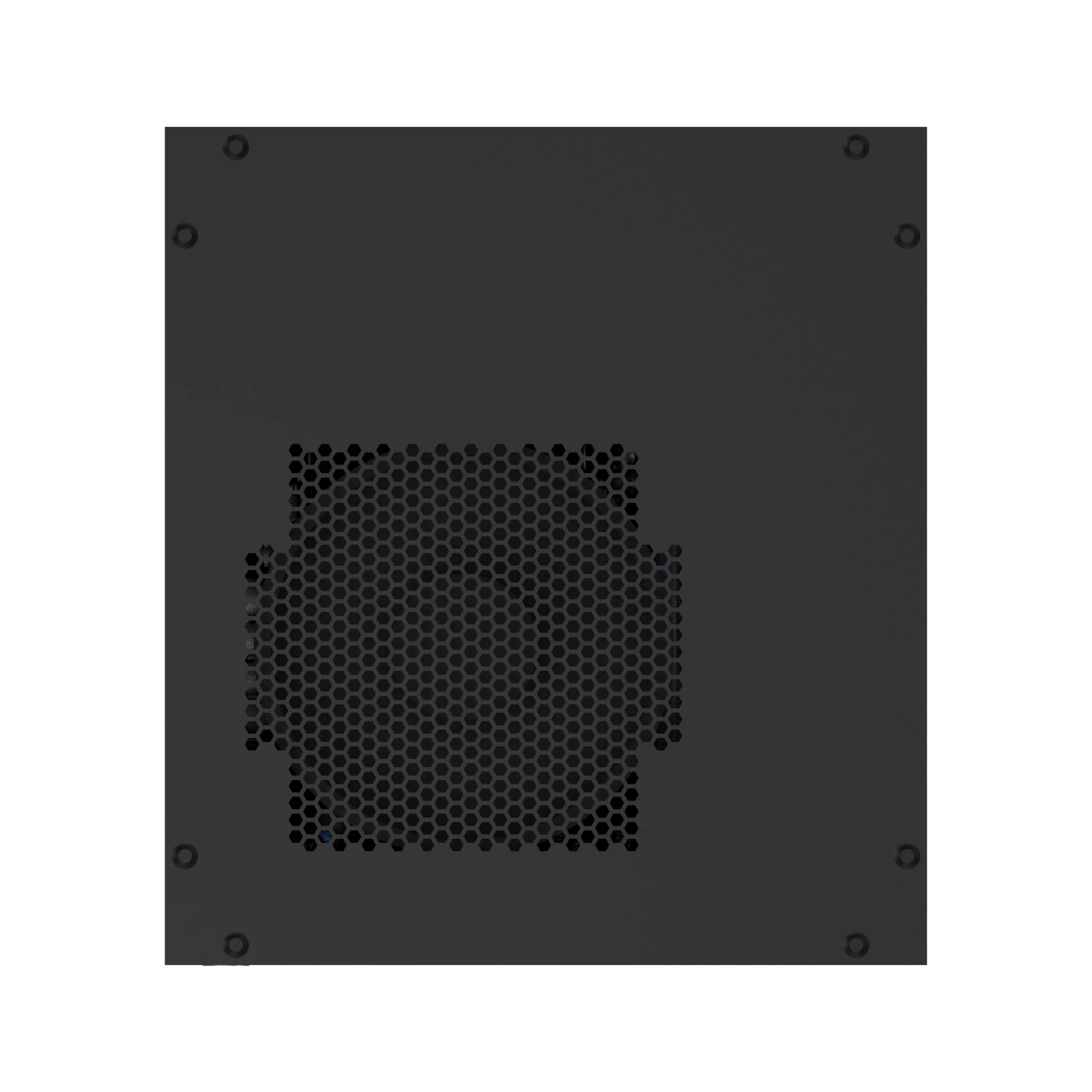

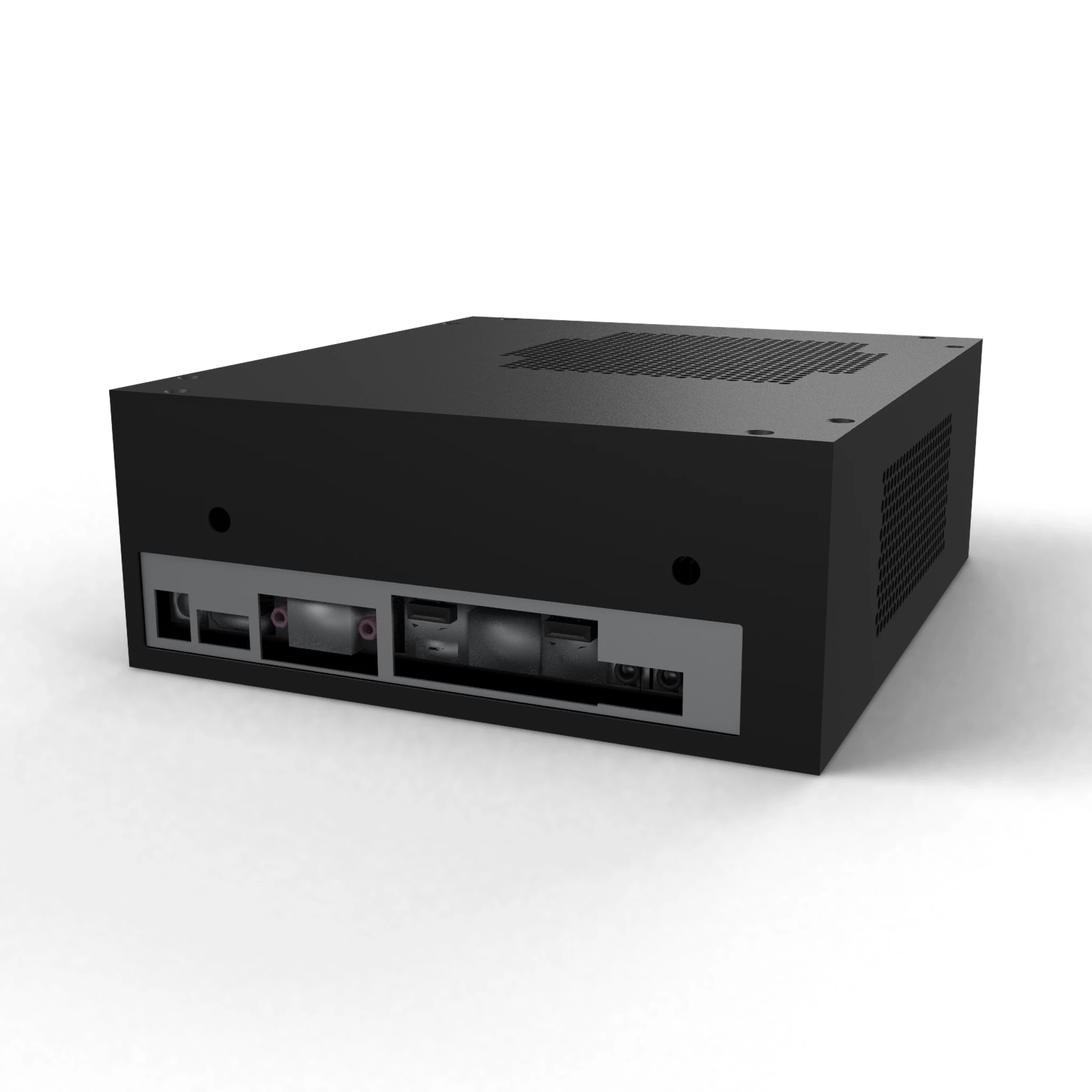

Thinvent® Neo H Mini PC, Intel® Core™ i3-12100 processor (4 core, up to 4.3 GHz, 12 MB cache), 64GB DDR4 RAM (2 x 32GB), 256GB SSD, 19V 7A Adapter, Dual Band WiFi, Windows 11 Pro
SKU: H-i3_12d-32_32-m256-19_7-m-11P-0
Specifications
Processing
| Generation | 12th |
| Series | i3 |
| Processor Brand | Intel |
| Processor Model | 12100 |
| Cores | 4 |
| Max Frequency | 4.3 GHz |
| Cache | 12 MB |
| Main Memory | 64 GB |
| SSD Storage | 256 GB |
Display
| HDMI | 1 |
| VGA | 1 |
Audio
| Speaker Out | 1 |
| Mic In | 1 |
Connectivity
| USB 3.2 Gen 1 | 4 |
Networking
| Ethernet | 1000 Mbps |
| Wireless Networking | Wi-Fi 5 (802.11ac), dual band |
Power
| DC Voltage | 19 Volts |
| DC Current | 7 Amps |
| Power Input | 100~240 Volts AC, 50~60 Hz, 1.5 Amps maximum |
| Cable Length | 1.5 Metre |
Environmental
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH, non condensing |
| Certifications | BIS, RoHS, ISO |
Physical
| Form Factor | Mini PC |
| Dimensions | 181.5mm × 199.5mm × 72mm |
| Packing Dimensions | 340mm × 235mm × 105mm |
| Housing Material | Steel base, aluminium cover |
| Housing Finish | Powder Coated |
| Housing Colour | Black |
| Net and Gross Weight | 0.91kg, 1.32kg |
Operating System
| Operating System | Microsoft Windows 11 Pro |
