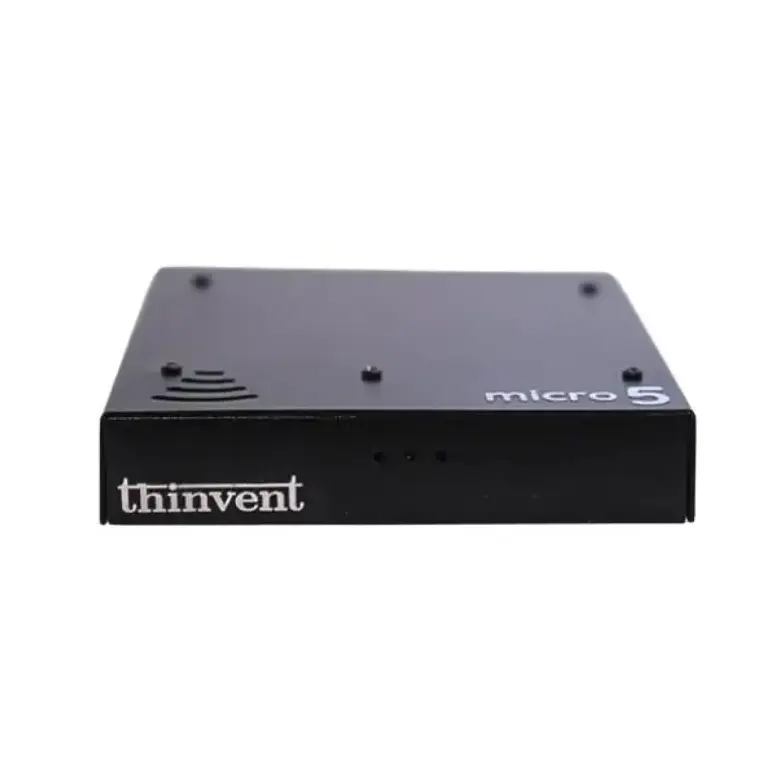

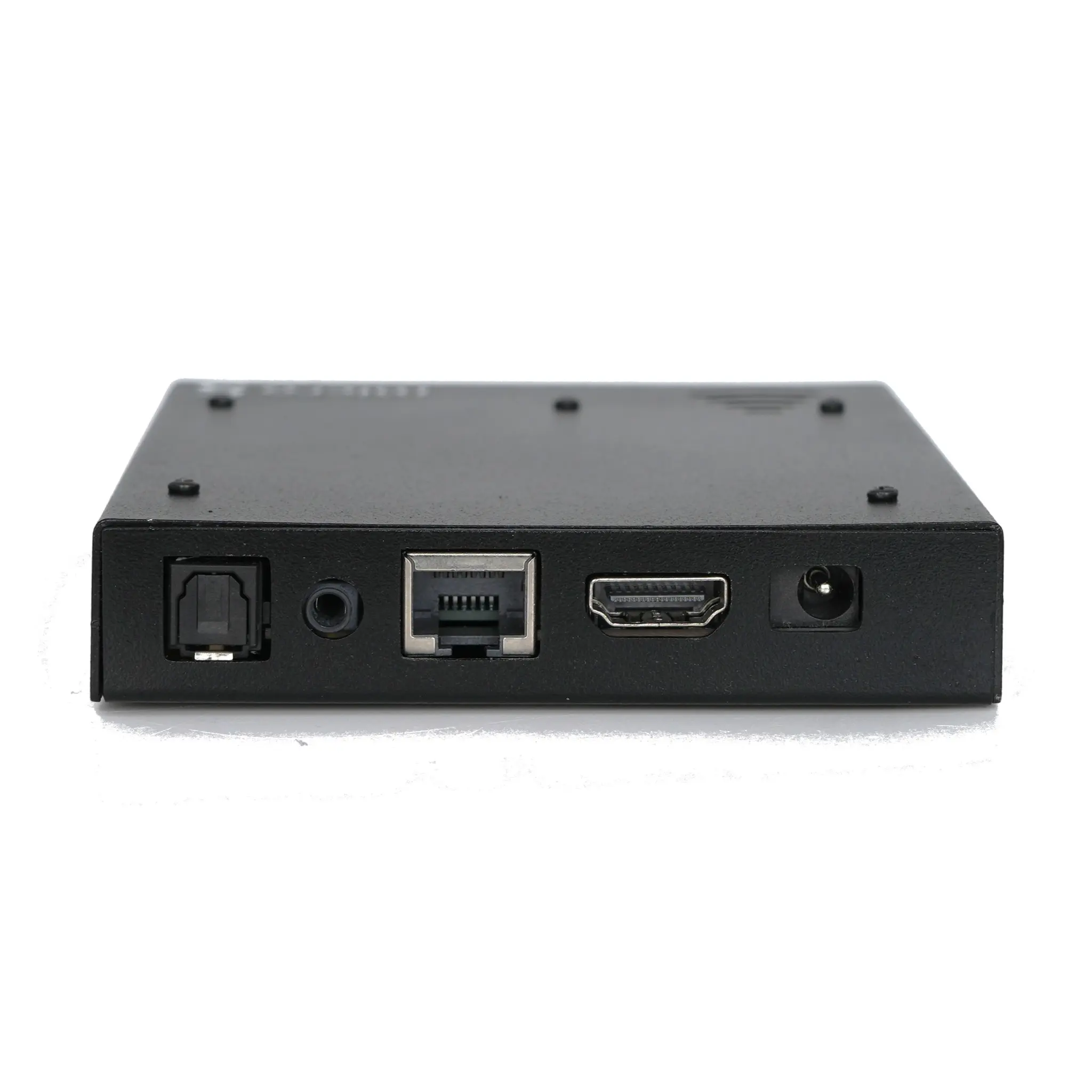

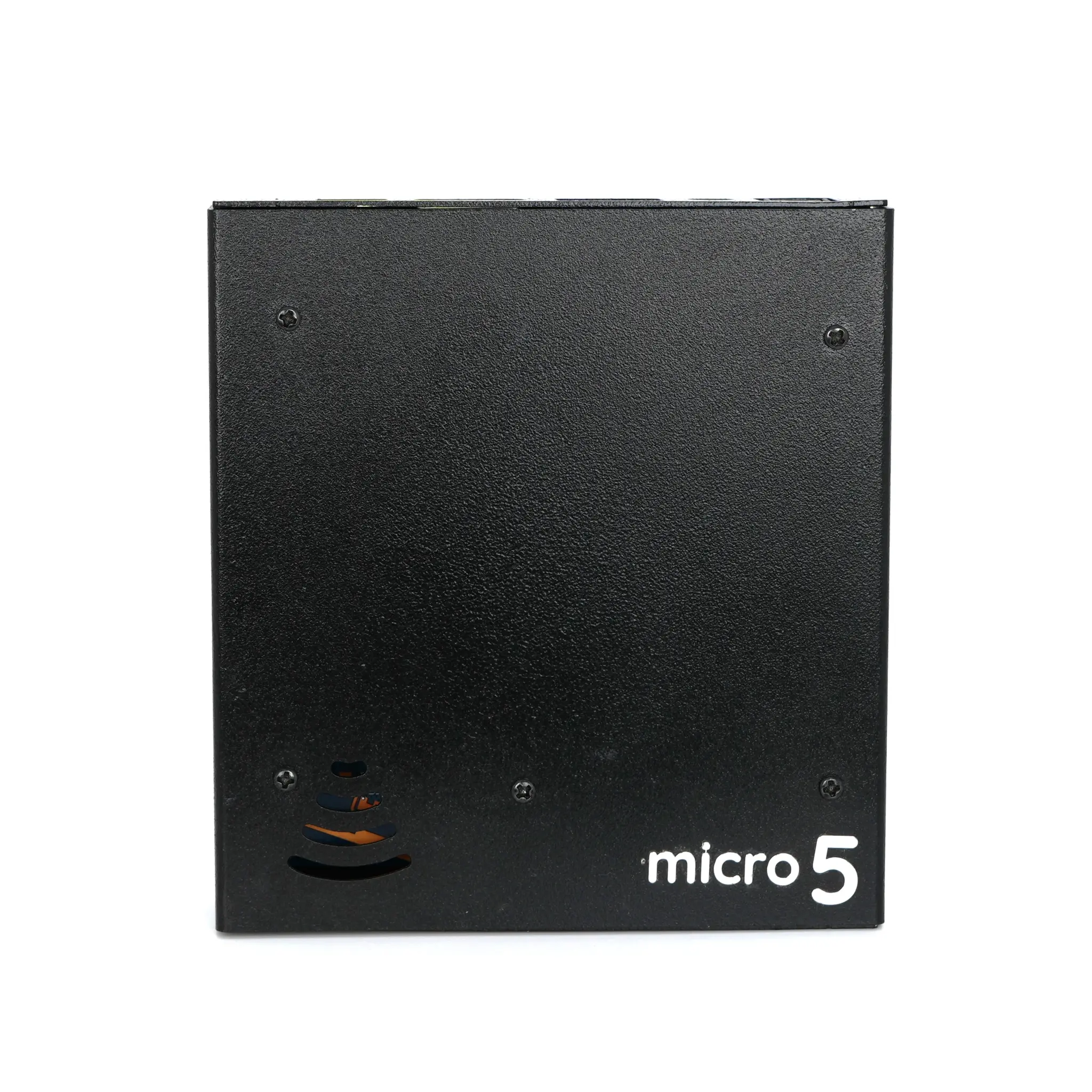

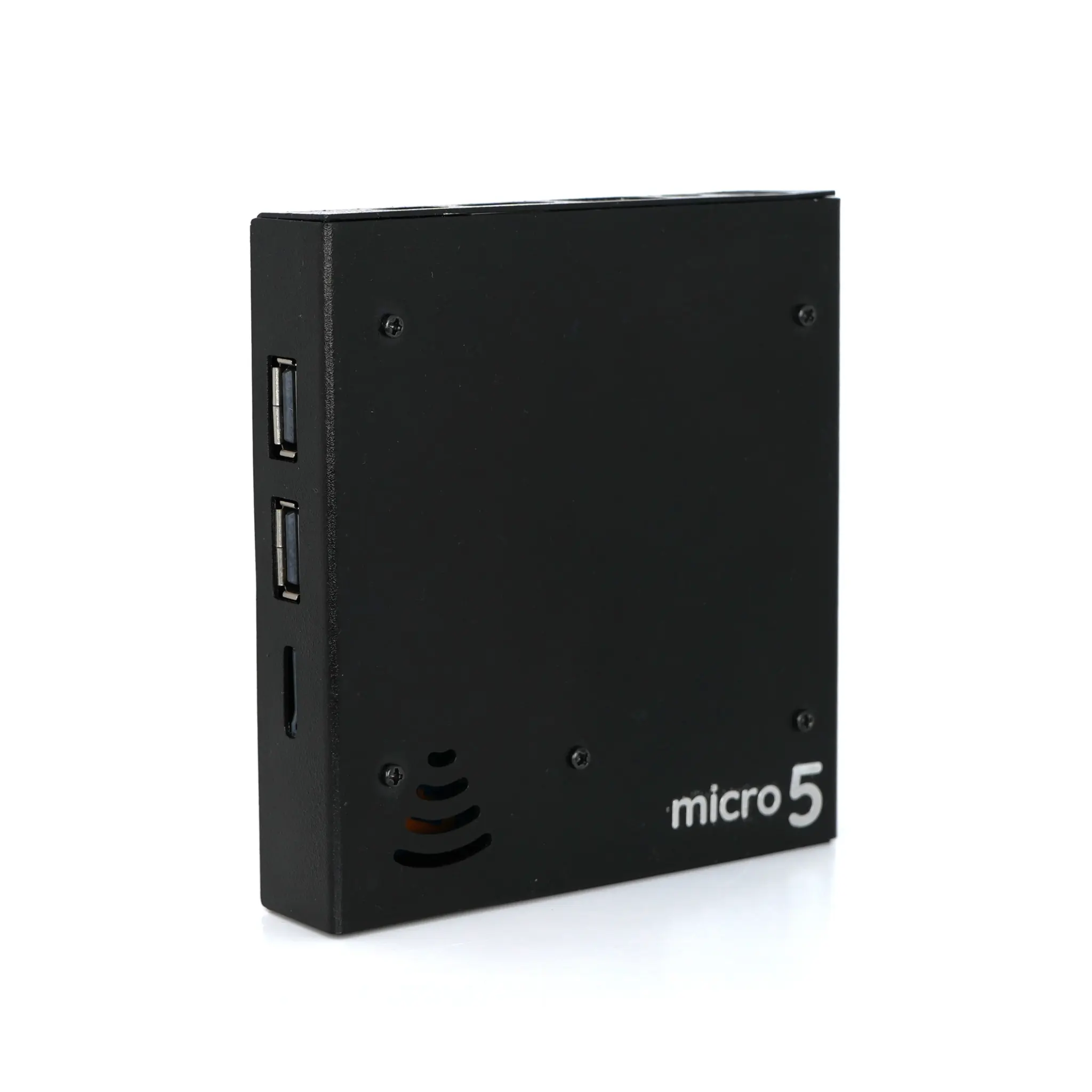

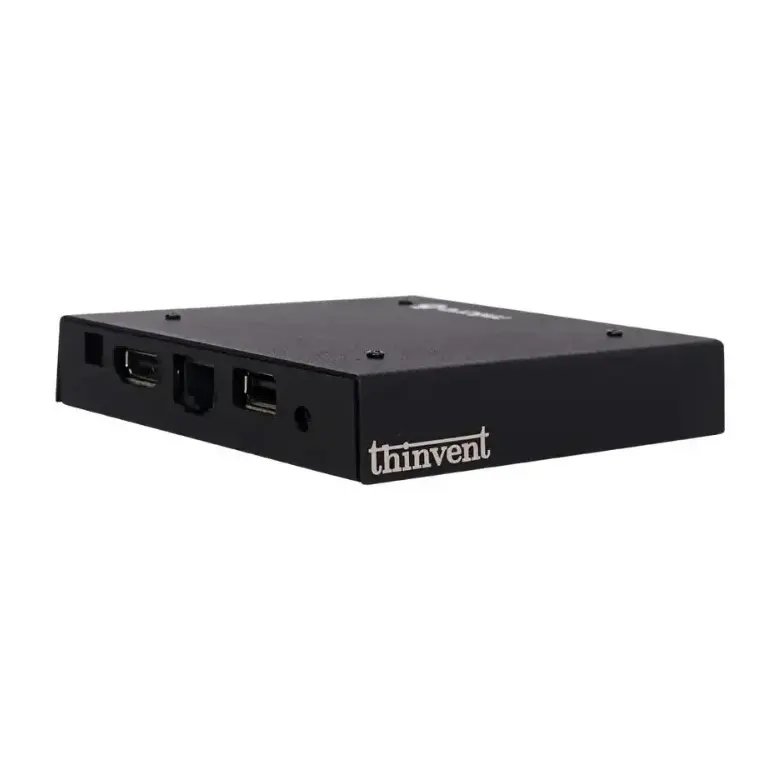

Thinvent® Micro 5R Thin Client, ARM® Cortex A53 processor (4 core, up to 2.0 GHz), 2GB Onboard RAM, 16GB eMMC Storage, 5V 2A Adapter, WiFi 6 and Bluetooth, Thinux™ Embedded Linux
SKU: VR-5R-o2-e16-5_2-W6-Thinux-0
Specifications
Processing
| Processor Brand | ARM |
| Processor Model | Cortex A53 |
| Cores | 4 |
| Max Frequency | 2.0 GHz |
| Main Memory | 2 GB |
| SSD Storage | 16 GB |
Display
| HDMI 2.0 | 1 |
Audio
| Speaker Out | 1 |
Connectivity
| USB 2.0 | 2 |
| microSD Slot | 1 |
Networking
| Ethernet | 100 Mbps |
| Wireless Networking | Wi-Fi 6 (802.11ax), dual band, Bluetooth 5 |
Power
| DC Voltage | 5 Volts |
| DC Current | 2 Amps |
| DC Plug | 5.5x2.5mm |
| Power Input | 100~240 Volts AC, 50~60 Hz, 0.35 Amps maximum |
| Cable Length | 1.5 Metre |
Environmental
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH, non condensing |
| Certifications | BIS, RoHS, ISO |
Physical
| Form Factor | Thin Client |
| Thermal Design | Fanless Passive Cooling |
| Dimensions | 110mm × 106mm × 21mm |
| Packing Dimensions | 200mm × 155mm × 37mm |
| Housing Material | Aluminium |
| Housing Finish | Powder Coated |
| Housing Colour | Black |
| Net and Gross Weight | 0.15kg, 0.24kg |
Operating System
| Operating System | Thinvent® Thinux™ Embedded Linux |
| OS Features |
|
